Bespoke Large Format LED Screen Supply & Installation
LED Screens Direct specialises in designing large (2m to 30m wide) LED screen installations for high footfall locations in retail, transport and general public locations. We take the basic requirement of the client and translate it into a deliverable and cost-effective design which we then supply and install. On-going maintenance for the screen is also provided.

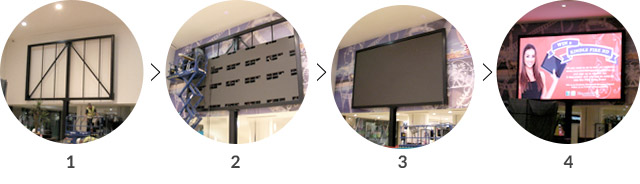

From concept through specification to sourcing, importation, delivery and installation LED Screens Direct takes care of the whole project.
1.667 mm LED Media Screen
400 mm x 300 mm panels built into through-window and in-store displays
Completely seamless with higher brightness & contrast than lcd video walls
Any size and shape with local or network control systems
LED Screen Panel Specification:
Pixel pitch: 1.667mm
LED: SMD1010
LED configuration: 3 in 1 SMD
Drive mode: 1/30 scanning
Module size (W x H): 200mmx150mm
Cabinet material: Die cast Aluminium
Cabinet size (W x H): 400mmx300mm
Brightness: 700 - 1200 cd/m2
Resolution per sqm: 360,000 pixels/m2
Viewing Angle: 140°/140°
Gray scale: 16 bits
Driving IC: SUM2032
Refresh rate: ≥1000 HZ
Working temperature: -20- +60℃
Humidity range: 10%-90%
IP level (F/R): IP20 / IP41
Maintenance: Front & Rear service
Life span: 80,000 hours
Power consumption: Max:900 W/m² Avg. 300 W/m²
Cabinet weight: 5.25 Kg.
Ideal for high ambient lighting indoor retail spaces both in-store and through-window
Also available as 1.923 mm in identical panel sizes
Custom made support frames to suit every environment and service access

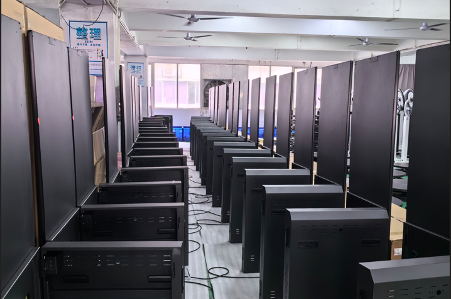

55 Inch Indoor Digital Advertising Totem
Screen:
Screen Size(diagonal): 55"
Panel type: LG LCD with LED backlight
Active Display Area(mm): 1218×685
Resolution: 1920×1080 pixels
Aspect Ratio: 16:9
Display Colours: 16.7 Million
Brightness: 450 - 700cd/m2
Contrast Ratio: 4500:1
Response Time: 8ms
Viewing Angle: 178°(H)/178°(V)
Lifetime (hours): 51,000+
Input Voltage: 90-260VAC
Power Consumption 320W
Mechanical:
Round corner cabinet with bolt down or free-standing base
Black body / silver edge
Front or rear service access
Operating temperature: -20°- +50°C
Bracket for PC media player
4mm tempered glass front panel
Accessories: Remote; power cord; manual
Inputs:
Content Input Port: HDMI; DVI
Video Mode: DAT/MPG/MPEG/TS/TRP/TP/M2TS/VOB/MP4/RM/RMVB/MKV/DIVX/AVI/
MOTIONJPEG/ASF/WMV
Audio Mode:MP3/M4A/AAC/WMA/ASF;
Picture Mode: JPG/BMP/PNG
Supports full HD:480P/720P/1080I/1080P
Multi-language
Variants:
Also available:
43", 49" and 65" totem with or without integral media player
43", 49", 55" and 65" landscape wall mounted unit with or without integral media player

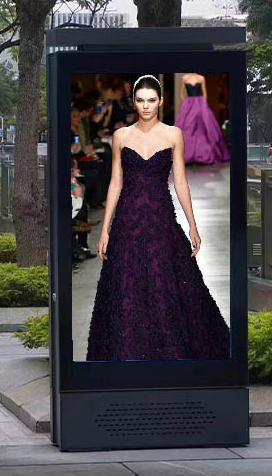

High Brightness Outdoor LCD advertising screens
LCD screens with high brightness LED backlight are now available in sunlight readable versions. The auto brightness controlled panels run at up to 3500 NITs and beyond, to make on street advertising clear and powerful even in full sun. The variable cooling systems maintain contrast in the screen image, and the 4k panels provide unparalleled sharpness to the images displayed, even at close viewing.
Ideal for on-street or forecourt use, these self contained weatherproof portrait screens are available in 43"; 55"; 65"; 75"and 80" diagonal sizes to suit all locations. Double sided versions also available.
Also available in landscape format or as wall mount screens, there has never been a more powerful DOOH tool to reach large passing audiences.

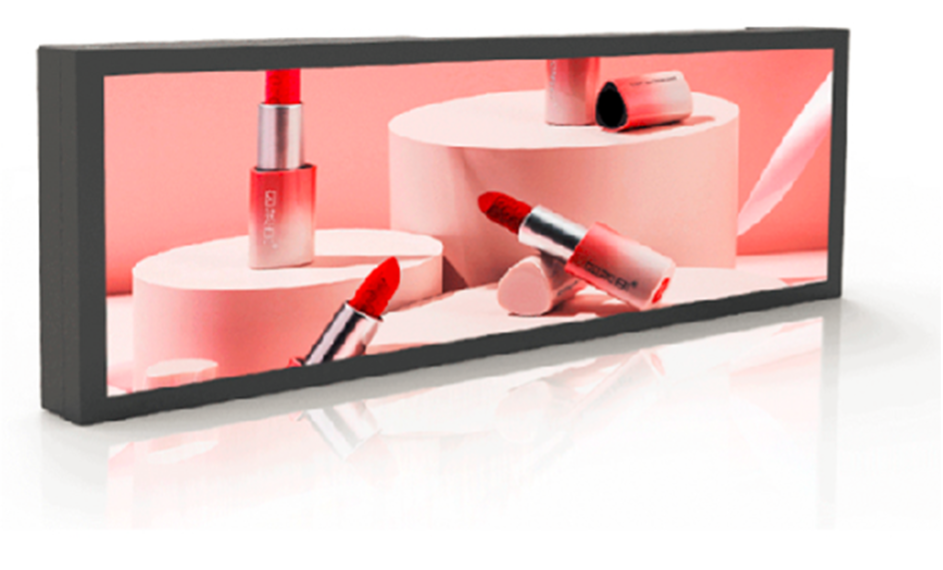

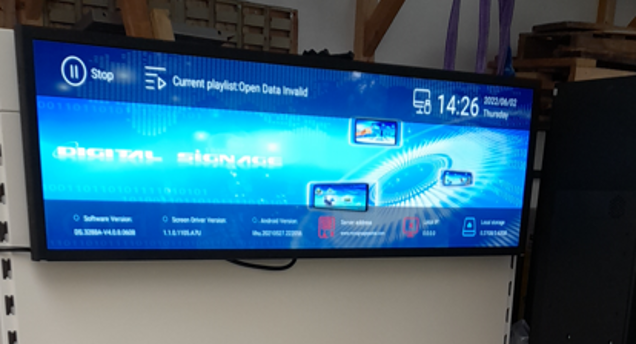

Unusual Aspect Ratio LCD screens
Literally cut from larger LCD panels to create very wide aspect ratio single panel screens, these header displays are ideal for indoor shelf tops where headroom is a problem. Screen widths can be matched to shelving system bay widths to create neat modular moving image pelmets at the top of the shelves in a supermarket or other self service retail environment.
Ultra thin shelf edge screens also available:
Ranging from 19" diagonal to 75" diagonal, applications include off-site built concession booths, to end of aisle vertical posters, all eye catching and centrally programmed to deliver key information right at the point of purchase.
Transparent LED screens for through-window and in-store displays
Often placed just inside street facing store or office windows, these innovative products allow light and customer sight into the store, whilst turning the window into a real-time promotional display screen for the outside viewer.
2 types of transparent screen are available - louvre type and perforated sheet type, sometimes called holographic screens.

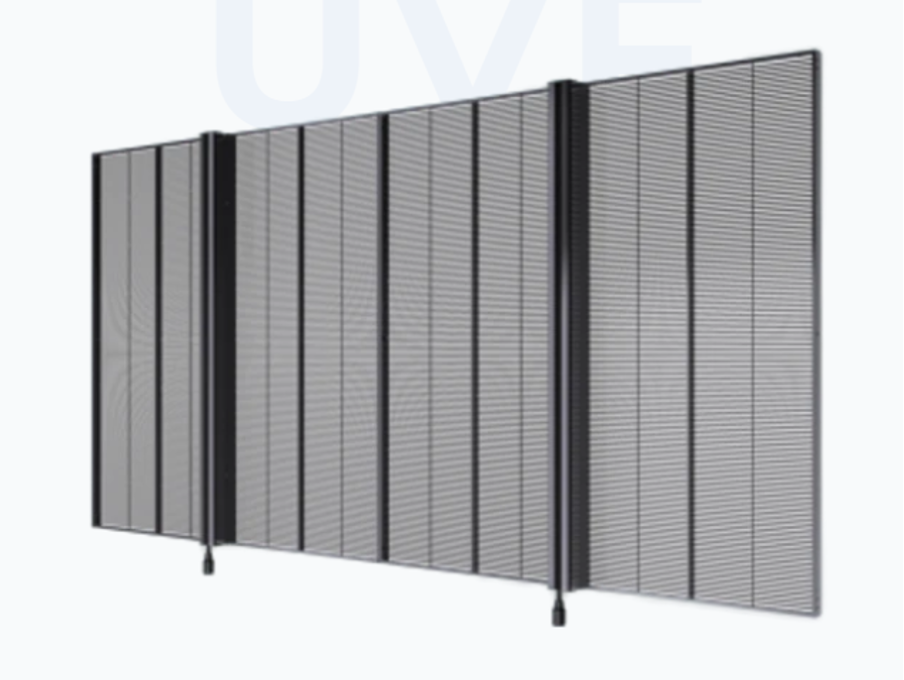

Louvre screen pic:
Louvre type transparent screens are cost effective and easy to install with typically 1 X 1 m panels that clip together and transparency percentages of 45% to 65% depending upon the screen resolution. The resolution is usually greater in the horizontal than the vertical, as the venetian blind style strips that hold the RGB LEDs can have twice as many pixels in the horizontal compared to the vertical, which needs to be separated more to allow through-vision of the panel.

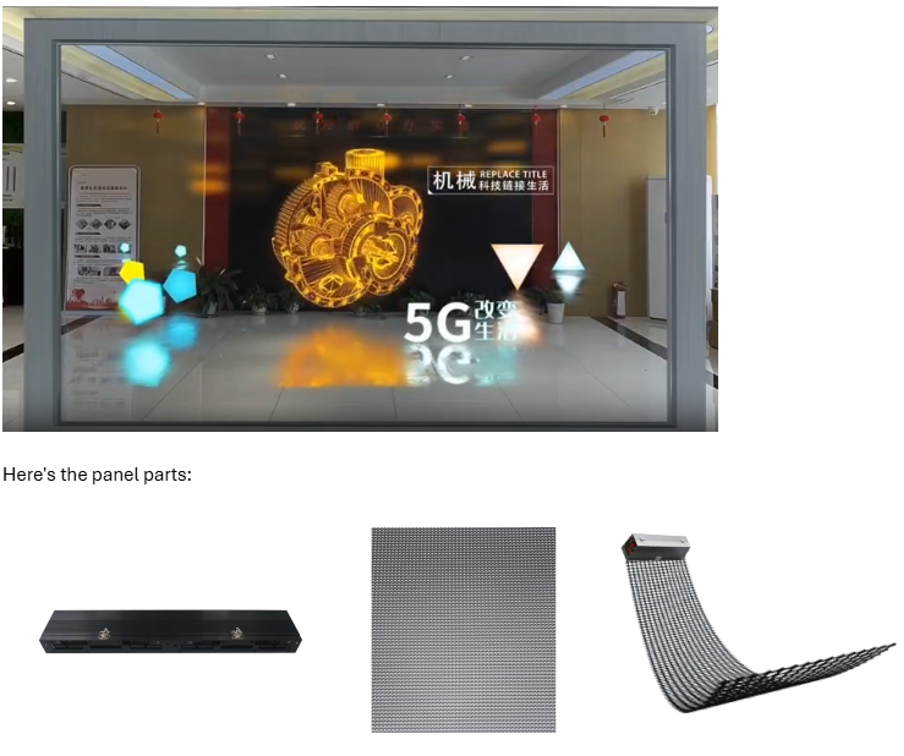

Holographic screen pic:
This type of mesh product is very new and can create large areas of transparent screen with no opaque strips supporting LEDs or power supplies. This is achieved by a custom made perorated mesh module that has equal pixel spacing in horizontal and vertical, has sufficient brightness to be visible through window in daylight and has a very high percentage transparency - typically 80%.
transparent LED products are available in a range of resolutions and transparency percentages, and these screens are usually specified to suit particular locations.
